Radiator - 2017 2018 2019 2020 2021 2022 2023 2024 6.7L Powerstroke Ford F250 F350 F450 | SPELAB

Don't just replace the failed radiator in your 2017-2024 6.7L Powerstroke Diesel with a stock replacement, upgrade it with the SPELAB Radiator #CS08093. Designed for a simple bolt-on installation, SPELAB's Radiators look like a factory replacement, but are upgraded to be stronger and better than the factory unit. The SPELAB Cool Radiators are built to give you a long-lasting direct-fit option to protect your engine and cooling system.

Details:

• Brand: SPELAB
• SKU: SPCS08093
• Color: Black

• Type: Radiator for 2017 2018 2019 2020 2021 2022 2023 2024 Ford F-250 F-350 F-450 6.7L Powerstroke Diesel


TECH SPECS :

Primary 1:

• Bottom Hose Ftting (in): 21/4 Right
• Top Hose Fiting (in): 2 Left
• Core Length (in): 38 3/8
• Core Material: Aluminum
• Core Thickness (in): 1 5/8
• Core Width (in): 2711/16
• Cross-flow/ Down-flow: Cross Flow
• Hazardous Material: No
• Inlet Length (in): 28 3/8
• Inlet Width (in): 2 3/16
• No. Of Rows: 2
• Oil Cooler (in): No
• Outlet Length (in): 28 3/8
• Outlet Width (in): 23/16
• Radiator Cap Supplied: No
• Tank Material: Plastic
• Tech Note: 0.E.M. Style Plastic Tank & Aluminum Core



Features:

High Efficiency Core
The SPELAB Cool Radiator is built with a high-efficiency core that has more fins per inch, and heavy-duty tubes to maximize cooling potential.

Internal Reinforcements
Manufactured using special aluminum brazing techniques, the SPELAB Cool Radiator Features internally reinforced end tubes that have additional strength at the outside corners where the core is most vulnerable.

Gasket Design
Using a proprietary rubber gasket to allow for expansion, contraction, and flex is one more reason the SPELAB Cool Radiators are built to last. The gasket is a common failure point in many OE radiator designs.

Revised End Tanks
For added strength and durability the SPELAB Cool Radiators feature revised end tanks. With reinforcement ribs added to weak points, the plastic mix includes a fiber reinforcement that is added during construction to increase longevity and help eliminate another failure point.

Upgraded Mounting Points
To make sure the SPELAB Cool Radiator is securely mounted in the same location as your stock radiator, the integrated mounting points have been strengthened to add durability.

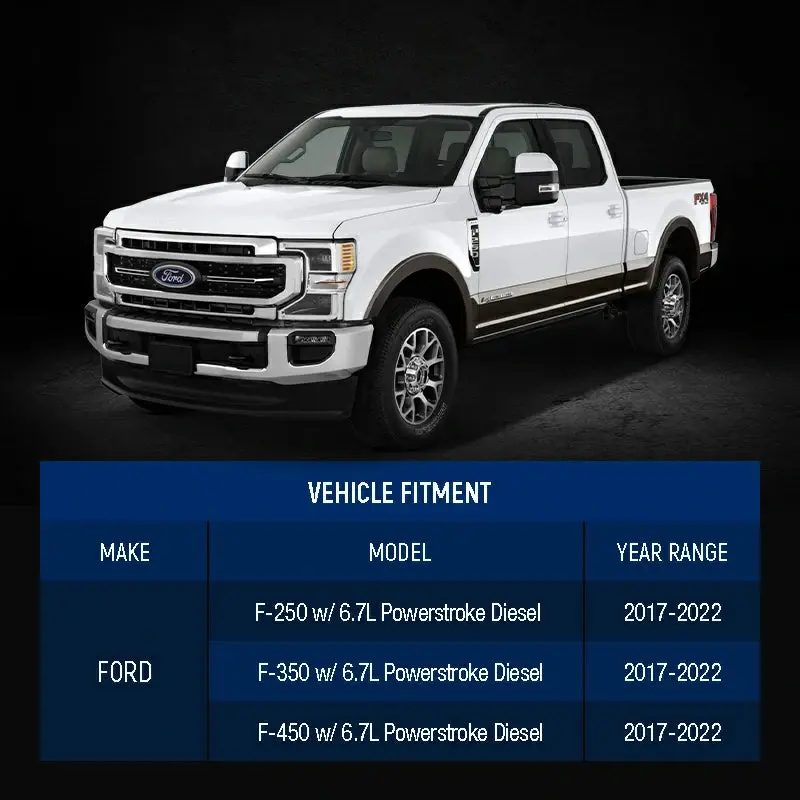

---tab Fitment---

• 2017-2024 Ford F-250 w/ 6.7L Powerstroke Diesel
• 2017-2024 Ford F-350 w/ 6.7L Powerstroke Diesel
• 2017-2024 Ford F-450 w/ 6.7L Powerstroke Diesel



---tab FAQ---

Frequently Asked Questions

Q: Is this radiator a direct bolt-on replacement for the factory unit?

A: Yes. The SPELAB Radiator (SKU: SPCS08093) is designed as a direct-fit, bolt-on replacement for the factory radiator in 2017–2024 Ford F-250, F-350, and F-450 trucks equipped with the 6.7L Powerstroke diesel. No cutting, welding, or custom fabrication is required.

Q: How is this radiator better than the OEM radiator?

A: While it retains an OEM-style plastic tank and aluminum core design, this radiator features a high-efficiency core with increased fin density, reinforced end tubes, upgraded mounting points, and revised end tanks with fiber-reinforced plastic. These upgrades improve durability and long-term cooling performance compared to the factory radiator.

Q: Does this radiator include a radiator cap or oil cooler?

A: No. This radiator does not include a radiator cap, and it does not have an integrated oil cooler. It is designed to reuse the factory radiator cap and work with the existing engine oil cooling system.

Q: Is this radiator suitable for towing or heavy-duty use?

A: Yes. The high-efficiency aluminum core, heavy-duty tubes, and reinforced mounting points make this radiator well-suited for daily driving, towing, and heavy-duty applications where the factory radiator may be prone to fatigue or premature failure.

Q: Will this radiator fit all 2017–2024 6.7L Powerstroke trucks?

A: This radiator is specifically designed for 2017–2024 Ford F-250, F-350, and F-450 models equipped with the 6.7L Powerstroke diesel engine. It is not compatible with gas engine models or other Ford platforms.
