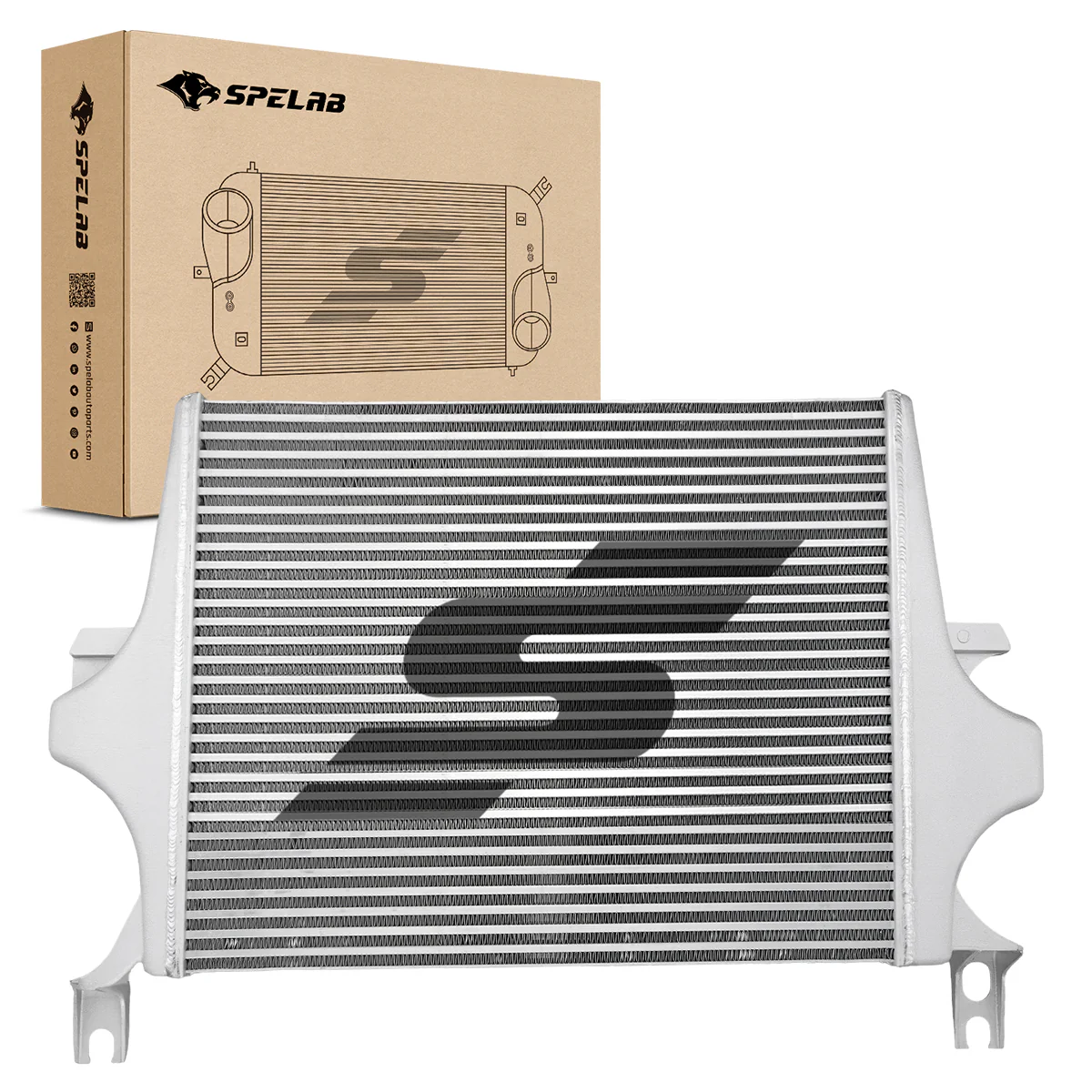

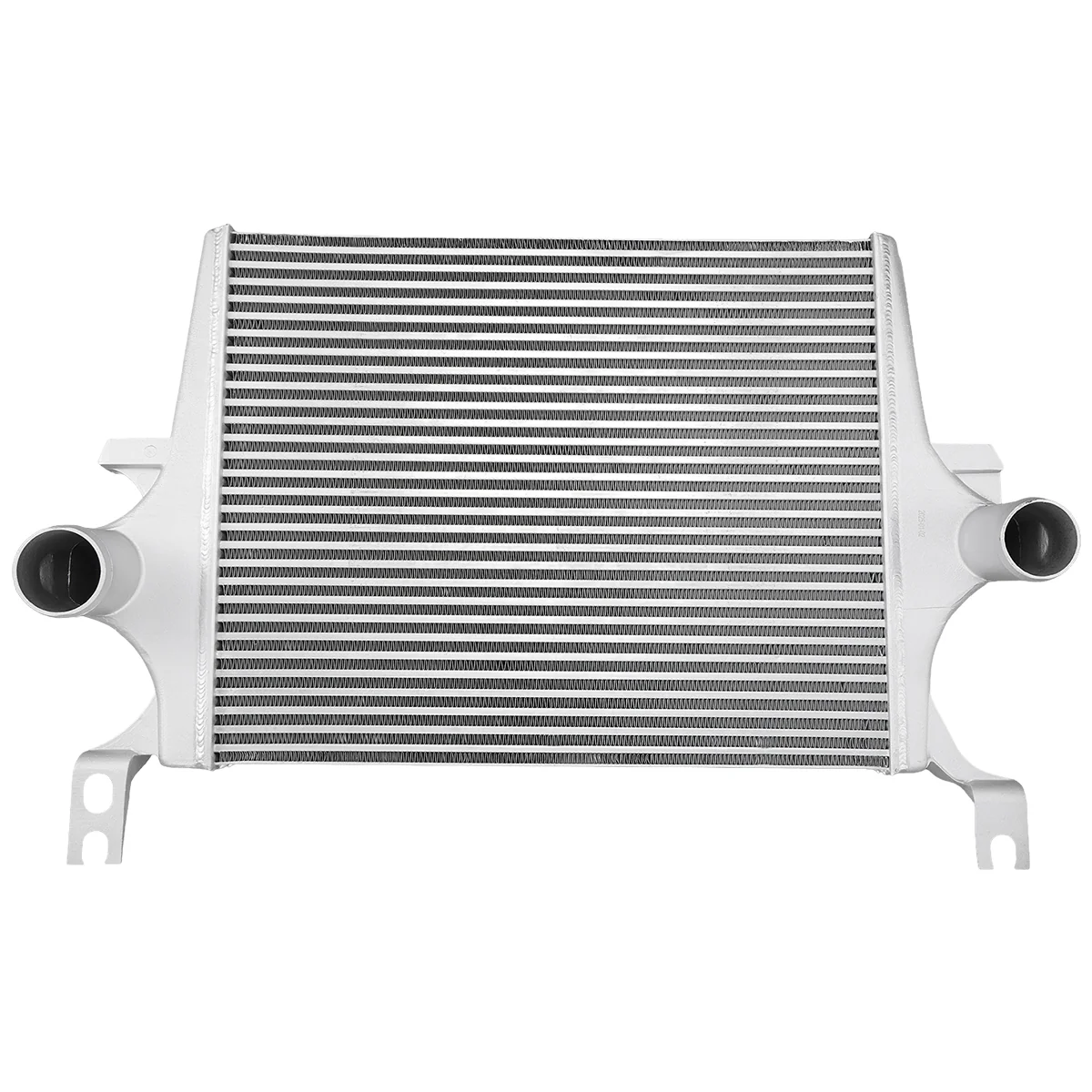

Upgrade All-Aluminum Tube-Fin Intercooler for 2003-2007 Ford 6.0L Powerstroke F250 F350 F450 F550 | SPELAB

---tab Description---

Description

Eliminate the #1 failure point of your factory charge air system. The SPELAB All-Aluminum Intercooler is engineered to replace the prone-to-failure stock plastic-tank unit on the 2003-2007 Ford 6.0L Powerstroke.

Designed with durability and daily drivability in mind, this unit features a high-efficiency Tube-Fin core welded to solid aluminum end tanks. Unlike the factory crimped plastic design that inevitably cracks and leaks boost, the SPELAB intercooler handles improved boost pressures reliably.

The lightweight Tube-Fin construction offers excellent thermal recovery and airflow, helping to reduce turbo lag and maintain consistent EGTs without the excessive weight of competition-style cores. It is the ultimate "fix-it-once" upgrade for daily drivers, work trucks, and fleet vehicles.

Fitment

• 2003-2007 Ford F-250/F-350/F-450/F-550 Super Duty 6.0L Powerstroke
• 2003-2005 Ford Excursion 6.0L Powerstroke

Specifications

Core Thickness (Tube-Fin)	64 mm
Material	Full aluminum alloy
Weight	13.34 kg (29.4 lbs)
Package Dimensions	103.5 × 25 × 70.5 cm (40.7" × 9.8" × 27.7")
Installation	Direct Bolt-On

Key Features

• Permanent Solution to Boost Leaks
  The factory 6.0L intercooler uses plastic end tanks crimped onto the core, which are notorious for blowing apart under load or developing subtle boost leaks that kill your fuel economy. Our unit is 100% Aluminum, ensuring it will never crack or separate like the OEM part.
• Fast Spool & Thermal Recovery
  The Tube-Fin core design is lighter and allows for rapid heat dissipation. This means the intercooler recovers quickly from heat soak after a hard pull, keeping your intake air temps (IATs) consistent. The internal flow dynamics are optimized to minimize pressure drop, helping your VGT turbo spool up faster.

• Engineered for Airflow Balance
  While increasing charge-air cooling, our core density is designed to allow sufficient ambient air to pass through to your radiator and transmission cooler. This balance is critical for the 6.0L cooling stack, preventing engine overheating issues often caused by overly dense aftermarket blocks.
• Direct Fit "Bulletproof" Upgrade
  Perfect for owners looking to "bulletproof" their 6.0L's air system. It installs directly into factory mounting points but offers the strength and reliability that the factory part lacked.

---tab FAQ---

Q: Will this fix my boost leak issues?
A: If your boost leak is coming from a cracked plastic tank or a failed crimp on your stock intercooler (a very common issue), this all-aluminum unit will permanently solve that problem.

Q: Why choose this Tube-Fin model?
A: This model is the perfect balance for daily driving and light-to-medium towing. It offers the durability of all-aluminum construction and fast heat recovery without the extra weight and cost of a heavy-duty competition core.

Q: Is this better than the OEM part?
A: Yes, significantly. By removing the plastic components and using a brazed aluminum core, we provide a part that handles heat and pressure far better than the stock unit.

Q: Do I need the Bar-and-Plate version instead?
A: Consider our Bar-and-Plate version only if you are running a high-horsepower compound turbo setup or towing near max capacity daily. For most street trucks and work vehicles, this Tube-Fin model provides the best balance of flow, cooling, and throttle response.

Q: Does it fit with the stock intercooler pipes?
A: Yes, it is compatible with both stock plastic/metal pipes and most aftermarket piping kits designed for the stock location.
